how to test IEC 60335 Ball Pressure Apparatus?
From: BONAD  Date: 2024-01-05 16:14:33

Appliance:

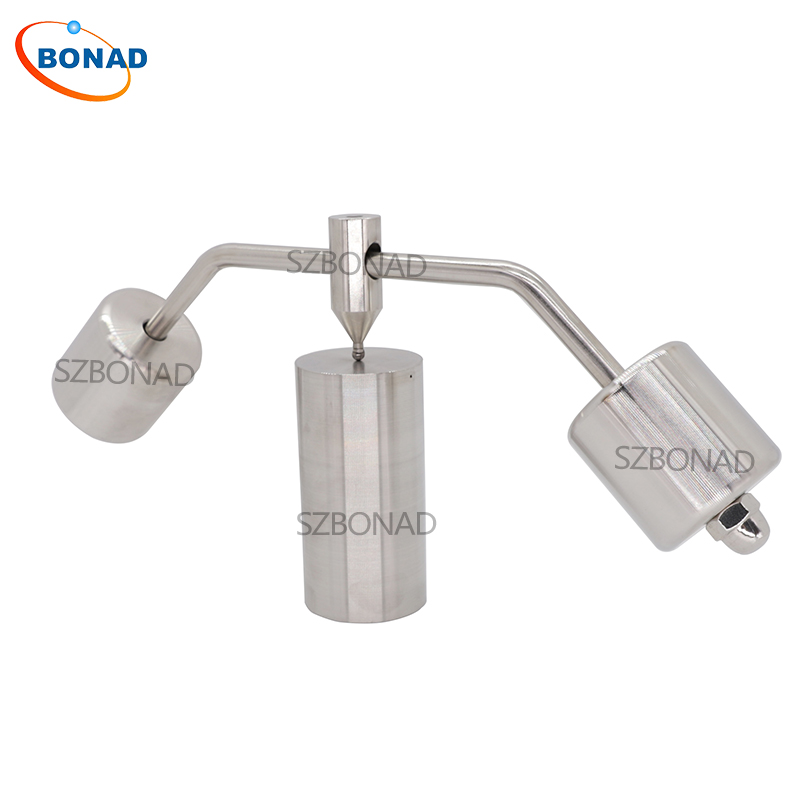

The ball pressure is a specified testing machine designed in compliance with standards for ball Pressure test to

test heat resistance of nonmetallic material.  It is ideal for heat resistance tests in electrical equipment and components, non-ceramic solid electrical insulating materials, etc.



Technical parameters

1. load: 20N±0.2N

2. material: 304 stainless steel

3. steel ball: bearing steel R2.5mm    ISO 3290

4. foothold: 50×100  2.5×25mm

5. standards: IEC60335,IEC60695

(This ball pressure tester suits for high temperature box)

how to test?

the ball pressure test is put specified Ball (R2.5mm) and total test force 20N ± 0.2N on the ball pressure tester which is in the form of horizontal state and placed on the sample surface in heating tank. in specified temperature , after 60min + 2min / 0min, then quickly put the sample (<10s)  in the 20 ℃ ± 5 ℃ water for cooling 6min ± 2min. After taking from water, measure sample surface indentation diameter within 3 min. depending on whether the indentation diameter is more than 2mm to assess the ability of the test heat distortion under the temperature prescribed.

SHENZHEN BONAD INSTRUMENT CO.,LTD, is a high-tech company in China, BONAD quality system has been strictly certified by ISO9001:2015. As a CIE Membership.
Our main products are Test Equipment, Electrical Safety Tester, Environmental Chamber, Temperature Chamber, Climate Chamber, Thermal Chamber, Salt Spray Test, Dust Test Chamber, Waterproof Test, accessibility test probe and test finger, Glow Wire Test and Needle Flame Test,freezing load test package, soil moisture sensor, all kinds of gauges and so on.
BONAD have gathered lots of experienced researchers and administrators on this field. BONAD products are manufactured strictly in accordance with various EN, IEC, CE, UL, VDE, VS, JIS, ISO, CEE, BS, FMV, GB and other similar international standards. All products can pass CE certificate and authenticated by the third party lab.

Please feel free to contact us if you need any support.
