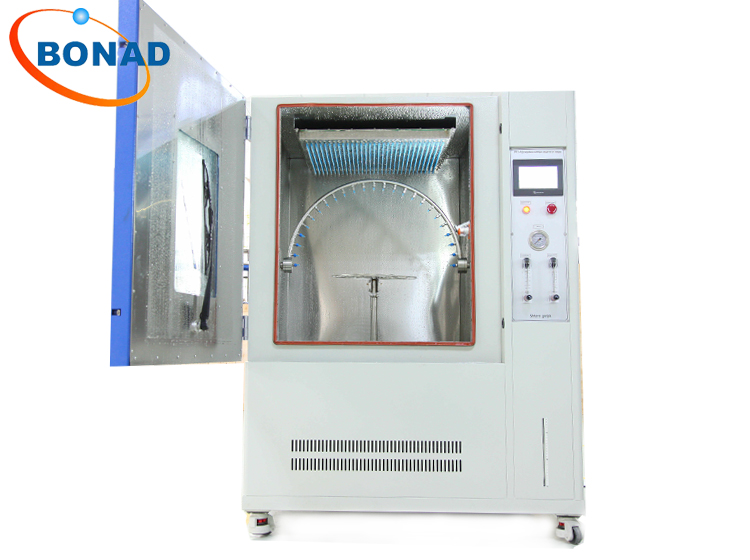

IPX1 to IPX4 Drip rain test and swing pipe waterproof test chamber
Name:IPX1 to IPX4 Drip rain test and swing pipe waterproof test chamber
Type:BND-IPX1-4B-R400
Manufacturer:we provide and custom made all kinds of IPX1-IPX9 waterproof test equipment,more details,please contact us.
Product Description:

IPX1 to IPX4 Intergrated Drip rain test and swing pipe rain test chamber

Model:BND-IPX14B-R400

Standard:

In accordance with IEC 60529: 2001 "Degrees of protection provided by enclosures (IP Code)", GB4208-2008 "enclosure protection class (IP code)" 14.2.1,14.2.2 terms and Figure 3 and GB7000.1 "lamps Part I: General Requirements and test "9.2.3 requirements

the Specificaiton of rain chamber


Inner dimension

900L*900D*1050H mm

Outer dimension

1350L*1150D*1750H mm

Turntable diameter

400mmR200mm is optional

Turntable Max. load

50KG

Turntable lifting height

450-750 mm

Turntable tiltable angle

0° or 15°horizontal direction

Turntable speed

1 -5r/minprecise control

Turntable rotate

foreward / Turn back and forth /

intermittent rotation

Testing time

0-999 min

Total weight

Appro. 230kg

IPX12 Technology Parameters

Drip plate area

600*600mm

IPX12 Spray aperture

diameter (mm)

0.4mm

Space of Dripping

aperture

20*20 mm

rainfall precipitation

IPX1=1mm/min   IPX2=3mm/min

Flow adjust

Manual setting

Drip plate lifting

Fixed

IPX34 Technology Parameters

Swing pipe radius

R400mmR200mm is optional

Swing pipe Flow

IPX3=1.1L/min;IPX4=1.8L/min

Spray aperture size(mm)

0.4mm

Space of Spray aperture

50mm

Swing pipe inner diameter(mm)

15mm

Swing pipe angle

240°Turn back and forth 4S、720°Turn back and forth

12Sprecise control or custom

Electric parameter

Power Supply

220V

Power Supply of samples

220V

Power

1.0KW

Protective device

Leakage, water shortage, short circuit

Standards

IEC60529:1989 +A1:1999 +A22013Degrees of protection provided by enclosures(IP Code)
