what are UL 498 test gauges?
From: BONAD  Date: 2024-03-29 17:38:39


what are UL 498 test gauges?

UL498 plug and socket test gauge is mainly used to test and inspect whether the structure and size of plugs and sockets conform to UL 498:2012 standards. And the mainly application industries is electronics, electrical appliances, plugs and sockets and other similar areas.

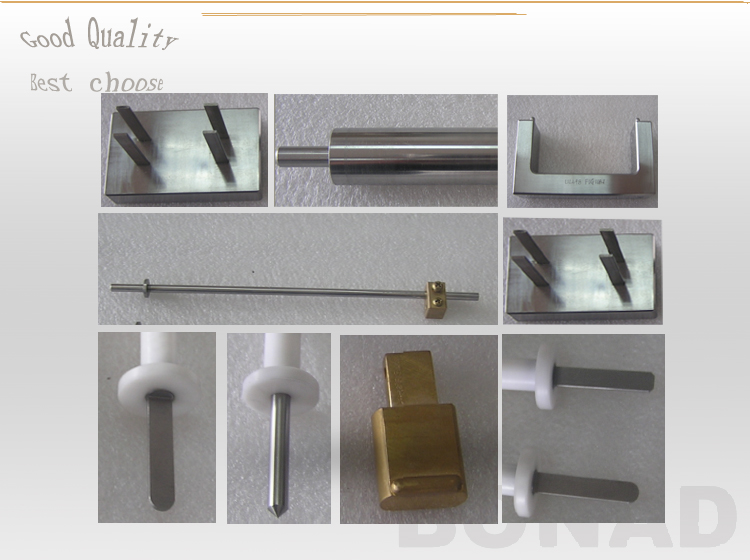

the UL 498 Test gauges list are as below:


Item Figure No. Describe Quantity
1 UL498-2012   Figure 9.1 Articulate   probe with web stop 1
2 UL498-2012   Figure 10.1 Probe 1
3 UL498-2012   Figure 31.1 Flat   probe 1
4 UL498-2012   Figure 73.1 Reference   plug 1
5 UL498-2012   Figure 73.2 Typical   test apparatus 1
6 UL498-2012   Figure 98.1 Improper   insertion test blades 2
7 UL498-2012   Figure 109.1 Test   plug 2
8 UL498-2012   Figure 109.2 Test   blade 1
9 UL498-2012   Figure 122.1 Receptacle   test fixture 1
10 UL498-2012   Figure 122.3 Push   out tool 1
11 UL498-2012   Figure 122.5 Bridge 1
12 UL498-2012   Figure 123.1 Test   pin A 1
13 UL498-2012   Figure 123.2 Test   pin B 1
14 UL498-2012   Figure 123.3 57g   ground pin 1
15 UL498-2012   Figure 123.4 113g   ground pin 1
16 UL498-2012   Figure 133.2 No.14AWG   test pin 1
17 UL498-2012   Figure 136.1 Small   test probe 1
18 UL498-2012   Figure 165.2 Fixture   for assembly security test 1
19 UL498-2012   Figure SD 5.1 Standard   grounding pin 1
20 UL498-2012   Figure SD 13.1 Standard   grounding pin 1
21 UL498-2012   Figure SD 13.2 Over   size ground pin 1
