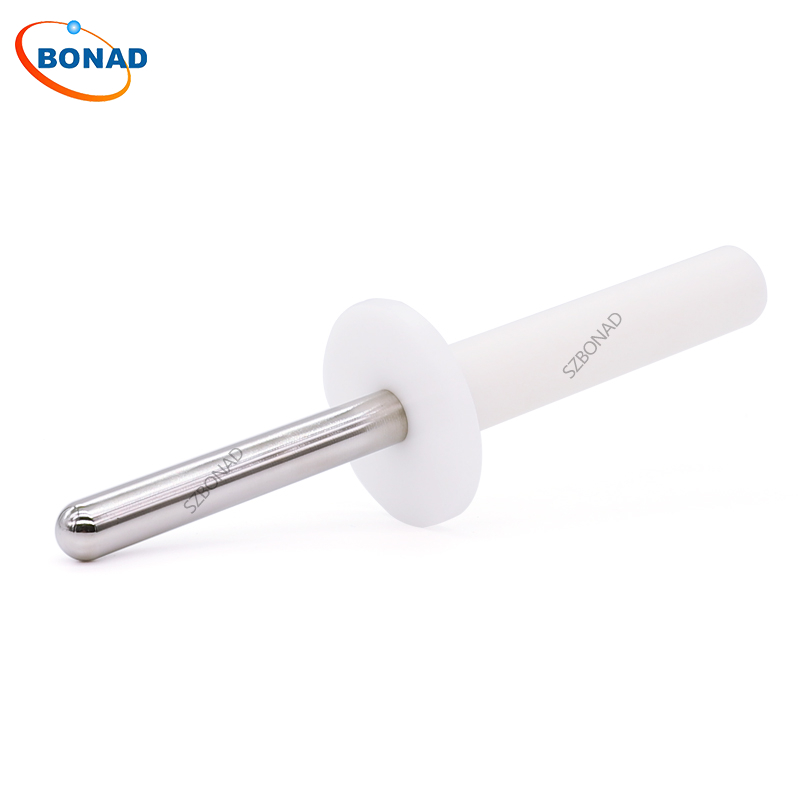

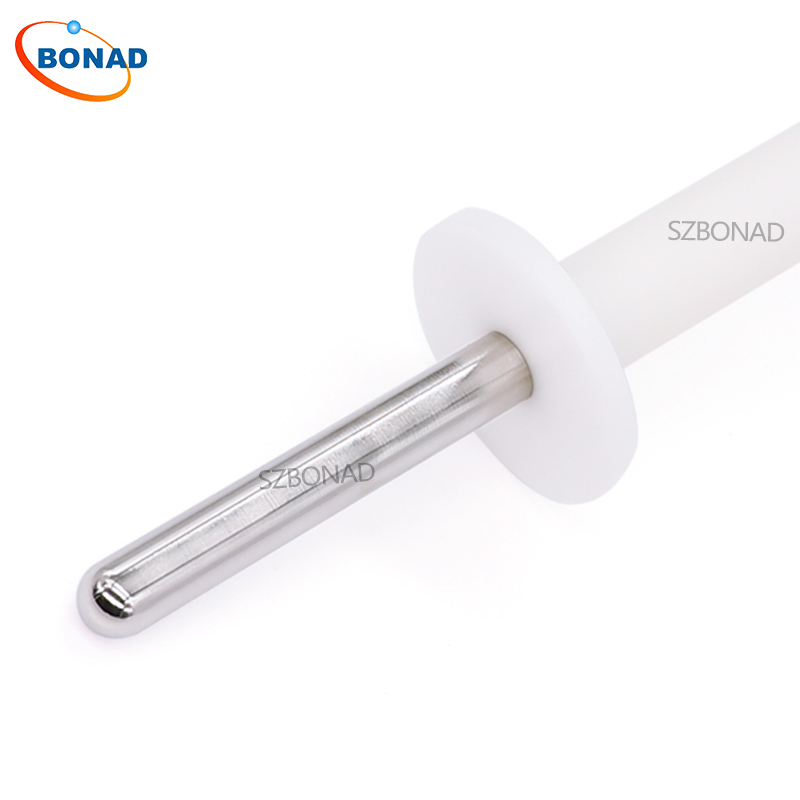

IEC 60065 12mm Telecom Test Probe
Name:IEC 60065 12mm Telecom Test Probe
Type:BND-TB12
Manufacturer:Shenzhen Bonad Instrument Co., Ltd. We specialize in these products of these standards GB, IEC, UL, and BS ,such as pins,gauges for plugs and sockets , lamp holder, gauges and other products.
Product Description:

Specification:

Test Probe,12 mm Test Probe,

According to : GB4943, IEC950,GB8898IEC60065, IEC62151UL6500

Technical parameters

1, Probe Diameter:12mm

2, Probe Ball Diameter: 6mm

3, Probe Length: 80mm

4, Baffle Plate Diameter:50mm

5, Baffle Plate Thickness :5mm

6, Handle Diameter:10mm

7, Handle Length:100mm

Application:

The 12mm metal parts of the Test Probe can not touch the live parts or not close to hazardous parts,and 50mm baffle plate can not be entered . In the test requirements of protected against access to the hazardous parts.The Thrust Test Finger should be applied thrust


Note: Test Probe is made of precision stainless steel, taking up and putting down slightly when using, pay attention to maintenance.
