IEC 60335-2-21 2.5Mpa Hydrostatic Pressure Test System for Water Heaters
Name:IEC 60335-2-21 2.5Mpa Hydrostatic Pressure Test System for Water Heaters
Type:BND-HPT-2.5
Manufacturer:The test system adopts touch computer control, can print data and display pressure curve , can set test pressure, constant pressure time, pressure rise rate, etc
Product Description:

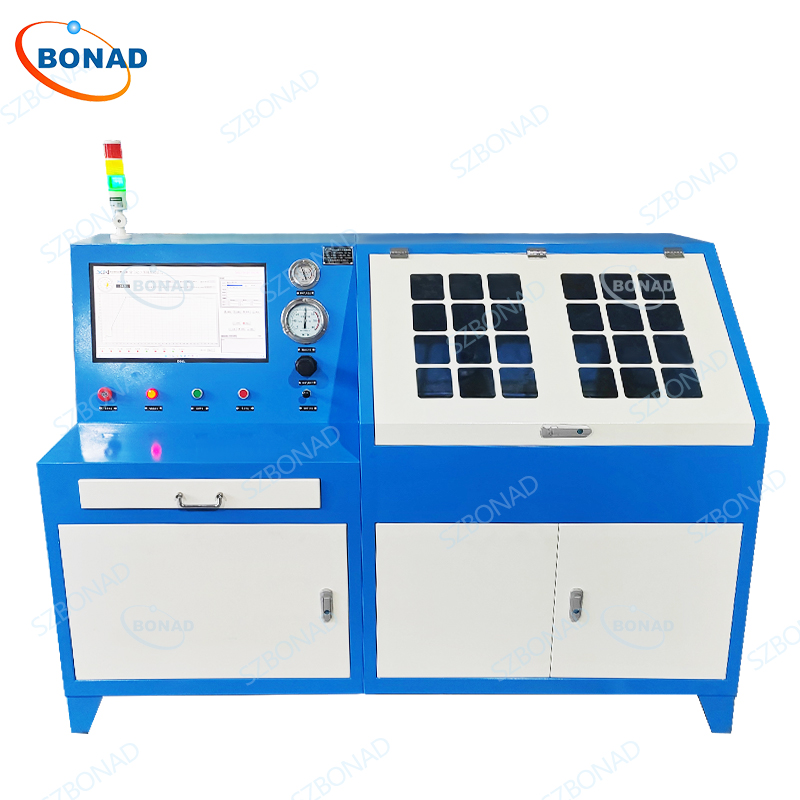

IEC 60335-2-21 2.5Mpa Hydrostatic Pressure Test System for Water Heaters

Product Overview

Welcome to our website dedicated to the IEC 60335-2-21 2.5Mpa Hydrostatic Pressure Test System for Water Heaters. This state-of-the-art hydraulic pressure test apparatus is compliant with multiple IEC standards including IEC 60335-2-5 cl.22.101, IEC 60335-2-7 cl.22.101, IEC 60335-2-21/35 22.47 & 22.103, and IEC 60335-2-24 cl.22.7.

Our system is designed for a variety of pressure-bearing products such as valves, water heaters, and treated fabrics to perform water pressure resistance tests, static pressure tests, blasting performance tests, and water sealing performance tests.

System Features

Our hydrostatic pressure test system is equipped with advanced features to ensure precise and reliable testing:

  1. Touch Computer Control: The system utilizes a touch computer interface for easy operation and data management.

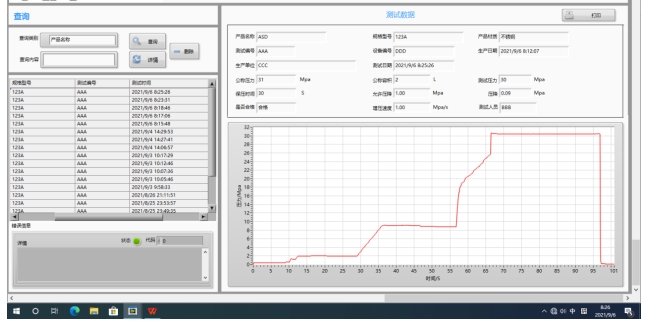

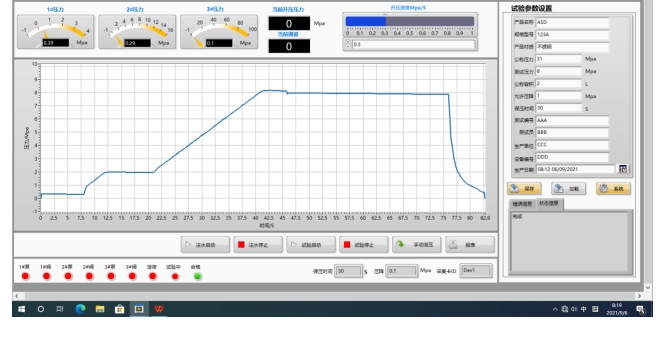

  2. Data Printing and Pressure Curve Display: Users can print test data and view real-time pressure curves.
  3. Customizable Test Parameters: Set test pressure, constant pressure time, and pressure rise rate according to your requirements.
  4. Pneumatic Water Pressure Booster Pump: Ensures stable performance and convenient operation.

Technical Parameters

Below are the detailed technical specifications of our hydrostatic pressure test system:

No. Contents Parameters
1 Power Supply Single phase AC 220V or 120V, 50-60Hz
3 Operation Interface Touch type computer
4 Pressurized Mode Air pressure
5 Test Pressure 0.5-2.5MPa
6 Hydraulic Pressure Control Accuracy ±0.05MPa
7 Boost Rate Can be controlled to be 0.13MPa/s
8 Water Temperature 10-60℃ controllable (accuracy ±1℃)
9 Constant Temperature Water Tank Volume ≥10L
10 Pressure Apply or Hold Time 0-999999s can be set
11 Use Environment Atmospheric pressure: 80~106kpa; ambient temperature: 5~40°C; relative humidity: (20~80)%RH; no rotation, vibration, electromagnetic interference, dust, explosive or corrosive gas; good heat dissipation

Contact Us

For more information about our hydrostatic pressure test system or to request a quote, please contact us through our contact page.
