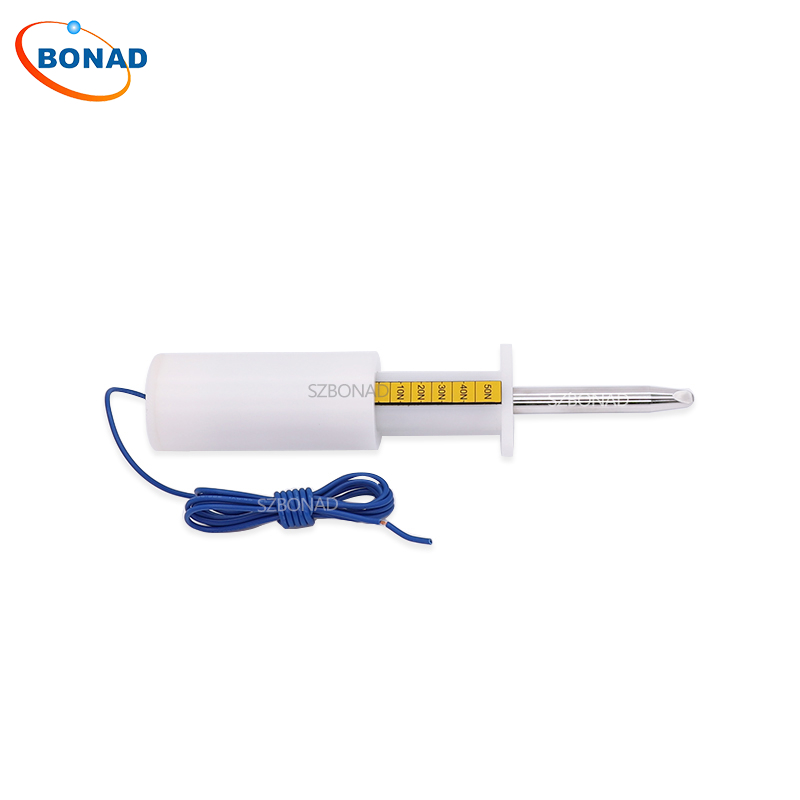

IEC60065 Rigid Test Finger Probe With 50N/75N thrust
Name:IEC60065 Rigid Test Finger Probe With 50N/75N thrust
Type:BND-1150/1175
Manufacturer:Shenzhen Bonad Precision Instrument Co., Ltd. Our complete line of accessibility probes will allow you to determine compliance with all IEC, EN, UL, CE, CSA and other international safety Standards.
Product Description:

IEC60065 BND-1150 Rigid Test Probe With 50N/75N thrust


Model:

BND-1150 Rigid Test Probe With 50N

BND1175 Rigid Test Probe With 75N


Basic Introduction:

1, According to : GB4706、IEC335、IEC61032、IEC60065

2,It is used to the protective performance check of the apparatus structures and shells which is easy  to access live parts

Technical parameters

1, Nodular Finger Diameter :12mm

2, Nodular Finger Length:80mm

3, Dam- board Diameter:50mm

Dynamometer:

BND-1150 type:10N-50N

BND-1175 type: 10N-75N

Application:

1, The finger of the Thrust Test Finger Probe can not touch the live parts or not close to hazardous parts, 50m,-20mmdam-board can not be entered into .

2,In the test requirements of preventing from accessing to the hazardous parts, Thrust Test Finger should be applied thrust

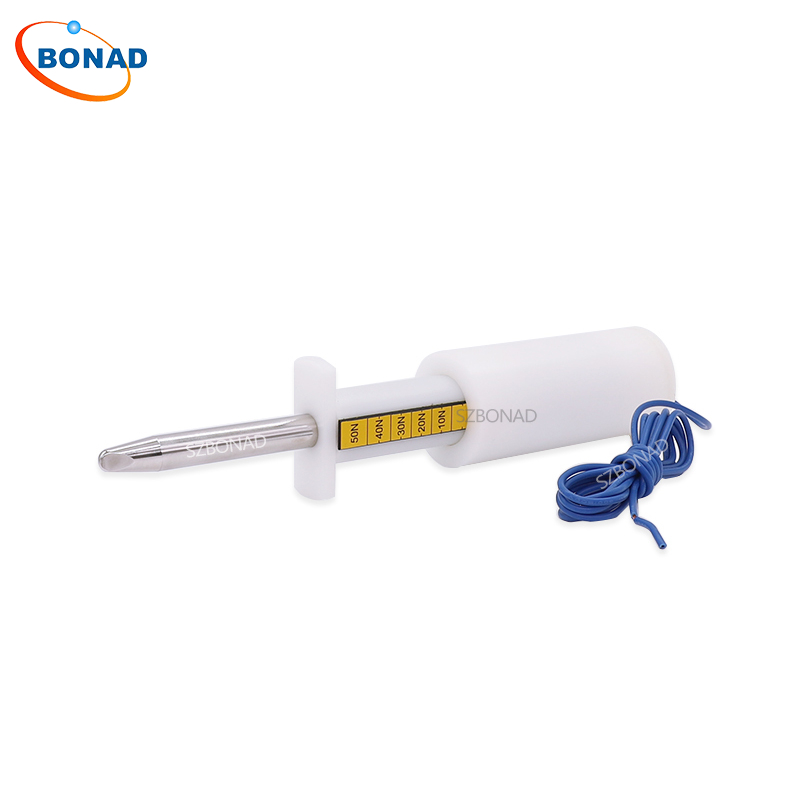

BND-1150 Rigid Test Probe With 50N Force

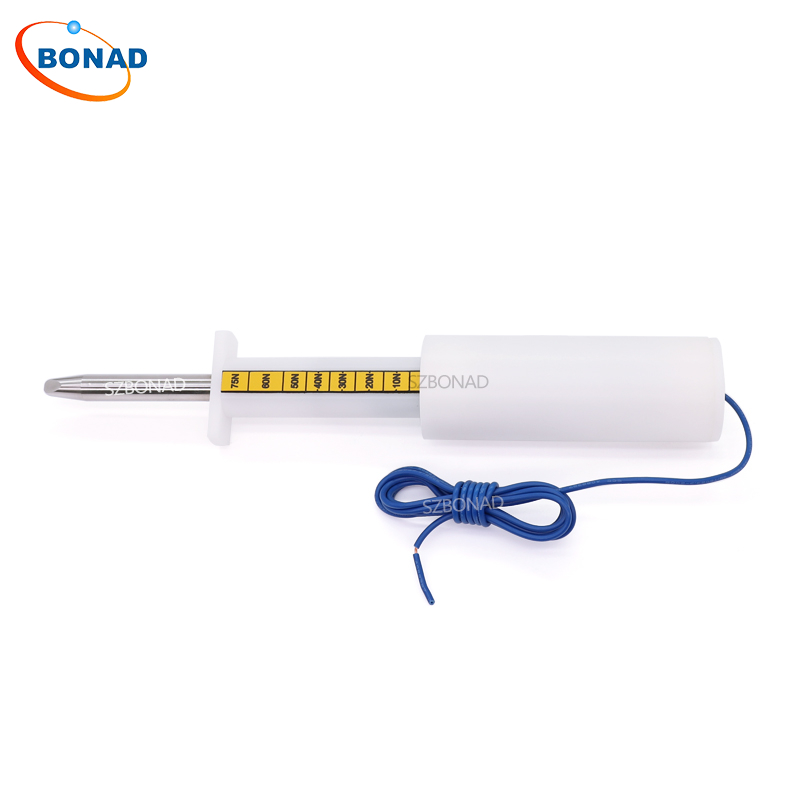

BND-1175 Rigid Test Probe With 75N Force
