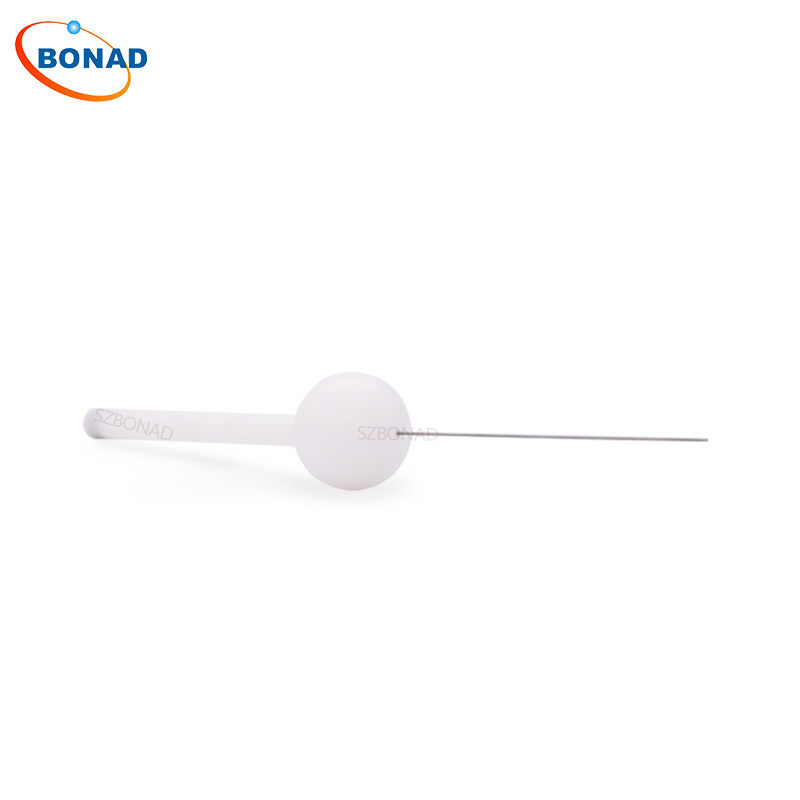

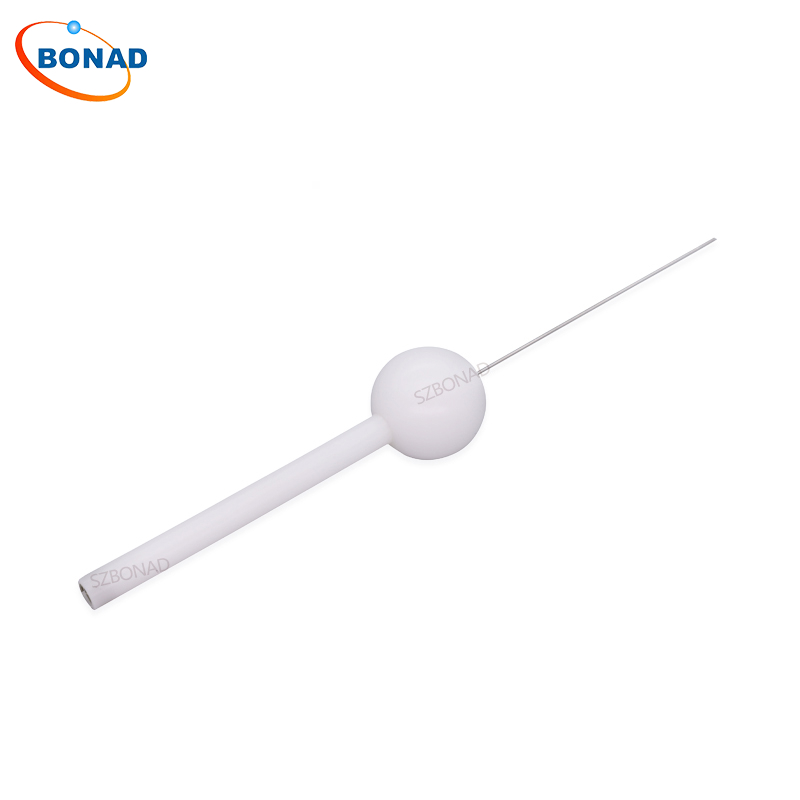

IEC61032 IP4X Test Probe D (Test Probe D)
Name:IEC61032 IP4X Test Probe D (Test Probe D)
Type:BND-D
Manufacturer:Shenzhen Bonad Precision Instrument Co., Ltd.Our complete line of accessibility probes will allow you to determine compliance with all IEC, EN, UL, CE, CSA and other international safety Standards.
Product Description:

Basic Introduction:

1,According to: GB/T4208-2008、IEC61032:1997、IEC60529:2001 AND UL

2,IP4X Test Probe D ( Test Probe D)is necessary appliance for household and similar electrical appliance of against electric shock protection test.

Technical parameters

1, Test Probe Length :100mm

2, Test Probe Diameter:1.0mm

3, Dam- sphere Diameter:35mm

4, Handle Diameter:10mm

5, Handle Length 100mm

6, According to IEC61032 figure 4 (the Test probe D), table 6 GB/T4208-2008 (the first characteristic digital 4/5/6)

Application:

1, The joint part of Standard test probe can't touch the live parts or close to the dangerous parts, 30mm circular baffle can not be entered into .

2,In the test requirements of preventing from accessing to the hazardous parts, Test Probe D need to be with thrust 1±0.1N
